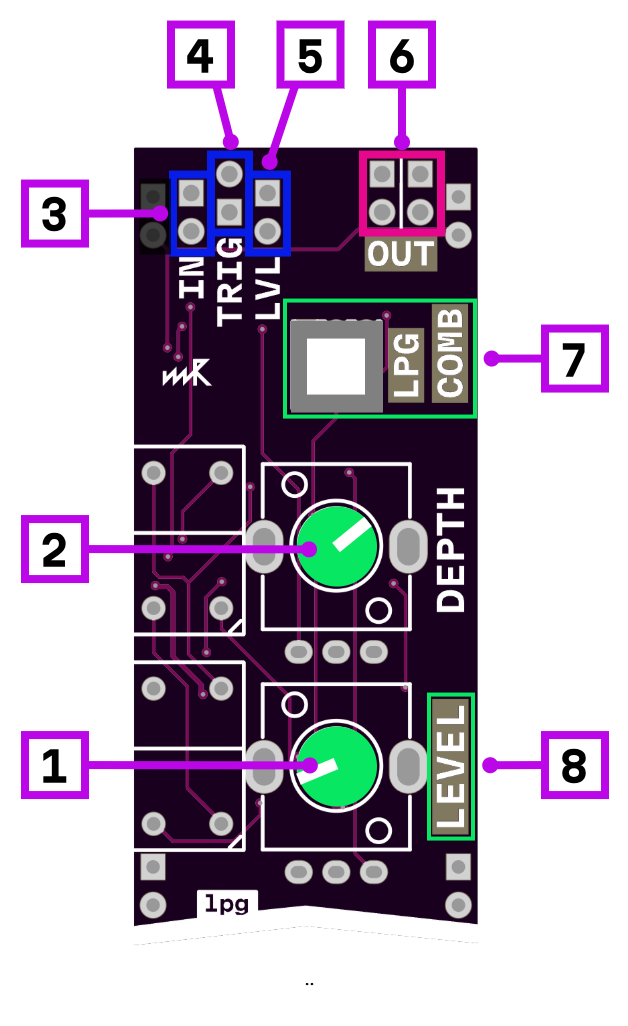

lowpass gate

1. level control
2. CV modulation depth
3. signal input
4. trigger input (converts any gate to short pulse. You can use Depth knob to control polarity)
5. CV level input
6. signal output
7. LPG/Combo mode switch (LPG has more resonance, Combo is closer to VCA with more high frequencies)
8. signal pass level indicator

Power consumption

384 mW
